Category: Shared projects — Author: r@rolftest99 — Created: 2026-02-03 13:08:45
report
Thread photo
1 photo(s)
42 WIRE 6 7
50 OLED INIT 128 64 3a

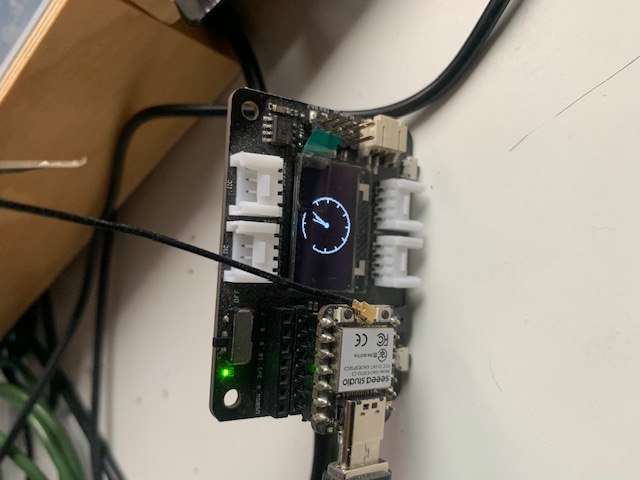

analogClock Example is full runing!

ESP32-C3 XIAO Expansion Board - SEEED Studio

Replies

2026-02-03 13:48:02 — avatar@Basic32
👍 0 • 👎 0
Great!!!!!
report
2026-02-04 10:59:04 — n@nid69ita
👍 0 • 👎 0
Hi, rolftest99
I have the same hardware. I can't found how install firmware on xiao.
Using basic32.com install from web page not work, xiao in boot mode (I think), orange led flash and UF2 disk appear.
I also tried to downloaded zip for Esp-C3, copied the three .bin files on uf2 driver but never occour.
Can you help me?

EDIT: sorry, I have samd21 version, not esp32 !!
report
2026-02-04 11:44:47 — r@rolftest99
👍 0 • 👎 0
Hi nid69ita,
a .bin file don't work direct on uf2. You must program the XIAO-Esp-C3 with the webinstaller on Basic32.com or you must ask Roby to give you his nice Flash.bat file for esptool.py to flash! When i see it right it isn't on basic32.com or Roby?
report
2026-02-04 21:06:27 — avatar@Basic32
👍 0 • 👎 0
I removed it because I thought it was no longer needed, I'll put it back in the download folder if it can be useful
report
2026-02-07 17:28:48 — n@nid69ita
👍 0 • 👎 0
Hi, now I have a xiao ESP32. With Expansion Board work very well. Sorry for mistake.
Thank you rolftest99
report
2026-02-14 10:55:12 — r@rolftest99
👍 1 • 👎 0
The xiao Expansion Board works very fine with the ESP32-C3!
A lot of the GROVE (I2C) modules can test of a very simple way!
No soldering required!
report
2026-02-15 08:13:09 — avatar@Basic32
👍 0 • 👎 0
So I'll put it in the compatible boards. I wanted to make a list so I could know which ones have been tested and are working.
